Architectural Wall Washers OEM Technical Whitepaper: Precision Optics, Thermal Dynamics, and Sourcing Best Practices

Architectural exterior lighting has evolved beyond basic illumination into a precise science of light sculpting, energy efficiency, and structural aesthetics. Among modern lighting fixtures, linear LED wall washers and high-power architectural floodlights stand out as critical tools for lighting designers, electrical engineers, and facade contractors. Achieving seamless uniform illumination across tall vertical surfaces requires an in-depth understanding of optical distribution, structural thermal dissipation, micro-electronics, and severe environment ingress protection.

As a premier OEM/ODM Wall Washers Manufacturer and Global Exporter, our engineering core focuses on solving the primary pain points faced by procurement officers and lighting consultants: light trespass, chromatic aberration, thermal decay, water ingress failures, and control synchronization errors over extensive architectural facades.

1. Optical Engineering: Wall Grazing vs. Wall Washing Dynamics

Understanding the distinction between wall grazing and wall washing is fundamental when specifying custom linear luminaires:

• Wall Grazing: Luminaires are positioned close to the target surface (typically within 6 to 12 inches) utilizing narrow optical distributions (such as 5°, 8°, or 10° beam angles). This technique emphasizes surface texture, revealing the depth of stone masonry, concrete, brickwork, or carved facades by creating dramatic micro-shadows.
• Wall Washing: Fixtures are set back further from the wall (typically 2 to 4 feet) with wider or asymmetrical optics (such as 30°x60° or 15°x45° asymmetric lenses). The goal is to produce an even, flat plane of light, hiding surface imperfections and creating a smooth visual boundary across the structure.

Our OEM manufacturing facility utilizes custom optical-grade PMMA (Polymethyl Methacrylate) lenses and anti-glare honeycomb louvers engineered to deliver high optical efficiency exceeding 88%. By maintaining a strict MacAdam Ellipse standard (SDCM < 3), our wall washers guarantee uniform color consistency across thousands of meters of linear installation, eliminating visible color banding or patchy intensity drops.

2. Thermal Dissipation Management & Substrate Metallurgy

The longevity and lumen maintenance of high-power LED wall washers depend directly on effective heat management. Driven at high current density, LED junctions generate substantial thermal load. Inadequate heat sinks result in rapid luminous degradation (lumen depreciation) and color shift toward blue or yellow spectrums.

We solve thermal bottlenecks through high-performance materials and geometric design:

• 6063-T5 Extruded Aluminum Profiles: Featuring a high thermal conductivity rating of ~201 W/m·K, providing superior passive convection cooling compared to standard recycled aluminum alloys.
• Direct Thermal Path Metal Core PCBs (MCPCB): Utilizing 2.0W/m·K to 4.0W/m·K dielectric layers paired with 2oz heavy copper foil to rapidly draw heat away from Cree, Lumileds, or Osram LED chips.
• Structural Thermal Simulation: Prior to mold tooling, finite element thermal modeling (FEA) is performed to ensure junction temperatures ($T_j$) remain strictly below 75°C even when operating in ambient desert environments reaching 50°C.

3. Advanced Ingress Protection: IP66, IP67 & Fully Encapsulated IP68 Waterproofing

Outdoor linear wall washers face extreme environmental conditions, including torrential rain, UV radiation, freezing freeze-thaw cycles, and coastal salt spray corrosion. Ingress protection is not merely a matter of applying rubber gaskets; it requires structural sealing chemistry.

Our factory implements dual-barrier sealing technologies:

• Gasketed Mechanical Seals: Utilizing anti-aging Fluororubber (FKM) or UV-stabilized liquid silicone injection sealing rings that retain elasticity across temperates ranging from -40°C to +110°C.
• Full Polyurethane (PU) Resin Potting: For IP68 submersion-grade applications (such as fountains, coastal retaining walls, and low-lying ground channels), fixtures are vacuum-potted with optical-grade transparent PU compound, rendering the electronics completely immune to water, humidity, and chemical corrosion.
• Breather Vent Integration: Outfitted with protective waterproof/breathable membrane vents (Gore-tex style) to equalize internal/external pressure differentials caused by temperature fluctuations, preventing vacuum-induced moisture suction.

Global Procurement Trends & Future Outlook for Architectural Wall Washers (2025–2030)

As smart cities expand and sustainability mandates intensify globally (including Title 24 JA8 in North America and EU ERP directives), the architectural lighting procurement landscape is undergoing pivotal transformations. Sourcing directors and export buyers must align with three major industry macro-trends:

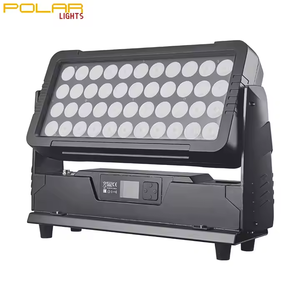

A. Tunable White & Multi-Channel Spectral Engines (RGBACL 6-in-1)

Traditional RGBW fixtures are giving way to advanced multi-channel spectral mixing systems, notably RGBACL (Red, Green, Blue, Amber, Cyan, Lime). By adding Lime and Cyan color chips, lighting designers can render hyper-accurate white spectrums ranging from 1800K warm candlelight to 10,000K crisp daylight with high color rendering indices (CRI > 95, R9 > 90). Our custom OEM production lines support multi-channel LED board assembly, allowing clients to deliver dynamic theatrical lighting and subtle architectural dynamic white shifts within a single unified fixture body.

B. Dark-Sky Compliance & Zero Light Pollution Optics

Municipalities worldwide are enforcing strict light pollution regulations to reduce skyglow, protect nocturnal ecosystems, and eliminate glare for passing traffic. Future-ready wall washers demand specialized visor shields, zero-degree uplight cut-off optics, and precise forward-throw light distributions. Our engineering team designs custom cutoff louvers and asymmetric visor accessories that direct 100% of emitted lumens onto the architectural target while maintaining zero lumens above the horizontal plane.

C. IoT Connectivity, DALI-2 DT8, and Bi-Directional RDM Diagnostics

Modern commercial buildings demand smart building integration. Standard ON/OFF or basic DMX installations are moving toward bi-directional protocol control. Through RDM (Remote Device Management) over DMX512-A or DALI-2 DT8 (Device Type 8), facility managers can remotely monitor luminaire operating temperature, LED working hours, voltage anomalies, and driver health status in real time. This bi-directional communication drastically reduces maintenance costs for high-rise installations where fixture access requires scaffolding or industrial rope access teams.
