UL & ETLNorth American Safety Listed
90+ CRIHigh Color Rendering Index LED
H / J / LUniversal Track Adapter Fit
OEM / ODMB2B Customization & Supply
Product Classification
Commercial & Architectural Track Lighting Solutions
Engineered for electrical contractors, lighting designers, and trade procurement buyers. Select from integrated LED track heads, line voltage systems, low voltage precision heads, and heavy-duty track accessories designed for high-performance retail and hospitality spaces.
Line Voltage Track
120V Standard Power
Low Voltage Track
12V Precision Optics
Metal Halide & High Output
Retail & Showroom Grade
Engineering Excellence
Spec-Grade Track Lighting for Overseas Buyers
With over two decades of manufacturing expertise, CAL Lighting manufactures track lighting systems built to handle demanding commercial environments. Our track heads combine die-cast aluminum heat sinks with optical-grade reflectors to ensure optimal thermal management and beam precision.
- Universal Adapter Compatibility: Configurable for Halo (H-Type), Juno (J-Type), and Lightolier (L-Type) 1-circuit and 2-circuit track channels.
- Optical Precision & CCT Control: Interchangeable reflectors (15°, 24°, 36°) and CCT options ranging from warm 2700K to cool 5000K.
- Advanced Dimming Integration: Smooth TRIAC, ELV, and 0-10V dimming profiles compatible with modern lighting control systems.
- Factory-Direct Customization: Custom housing colors (Brushed Steel, Architectural Black, Pure White, Dark Bronze), custom stem lengths, and private-label packaging.
Technical Guidelines
Track Fixture Selection Matrix by Application
Reference guide for engineering specifications, structural requirements, and lighting layout planning.
| Category | Operating Voltage | Lamping & Optics | Certification Marks | Primary Application |
|---|---|---|---|---|

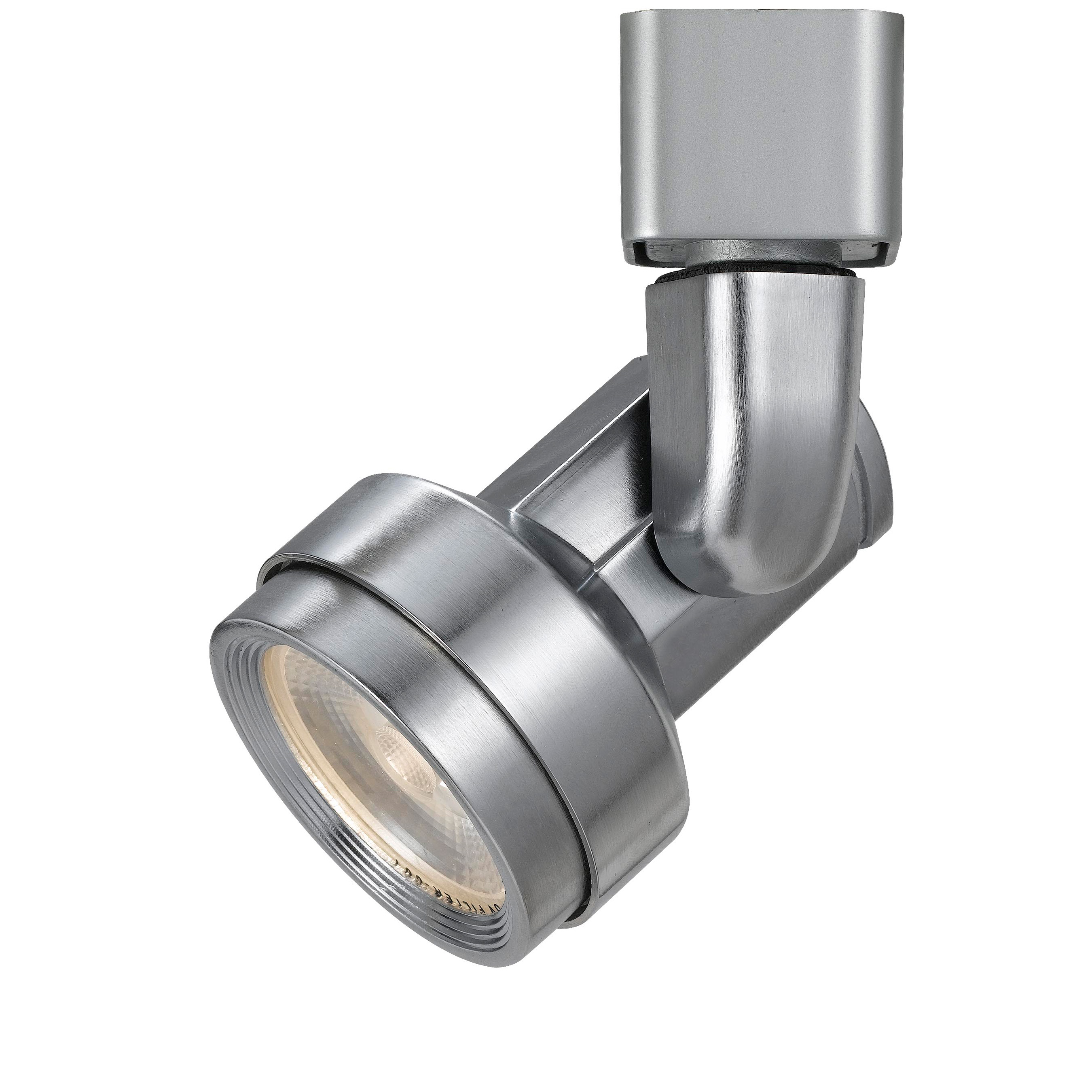

| LED Track Fixtures | 120V - 277V AC | Integrated COB LED / CRI 90+ | UL, ETL Listed, Dry/Damp | Art Galleries, Museums, Luxury Retail |

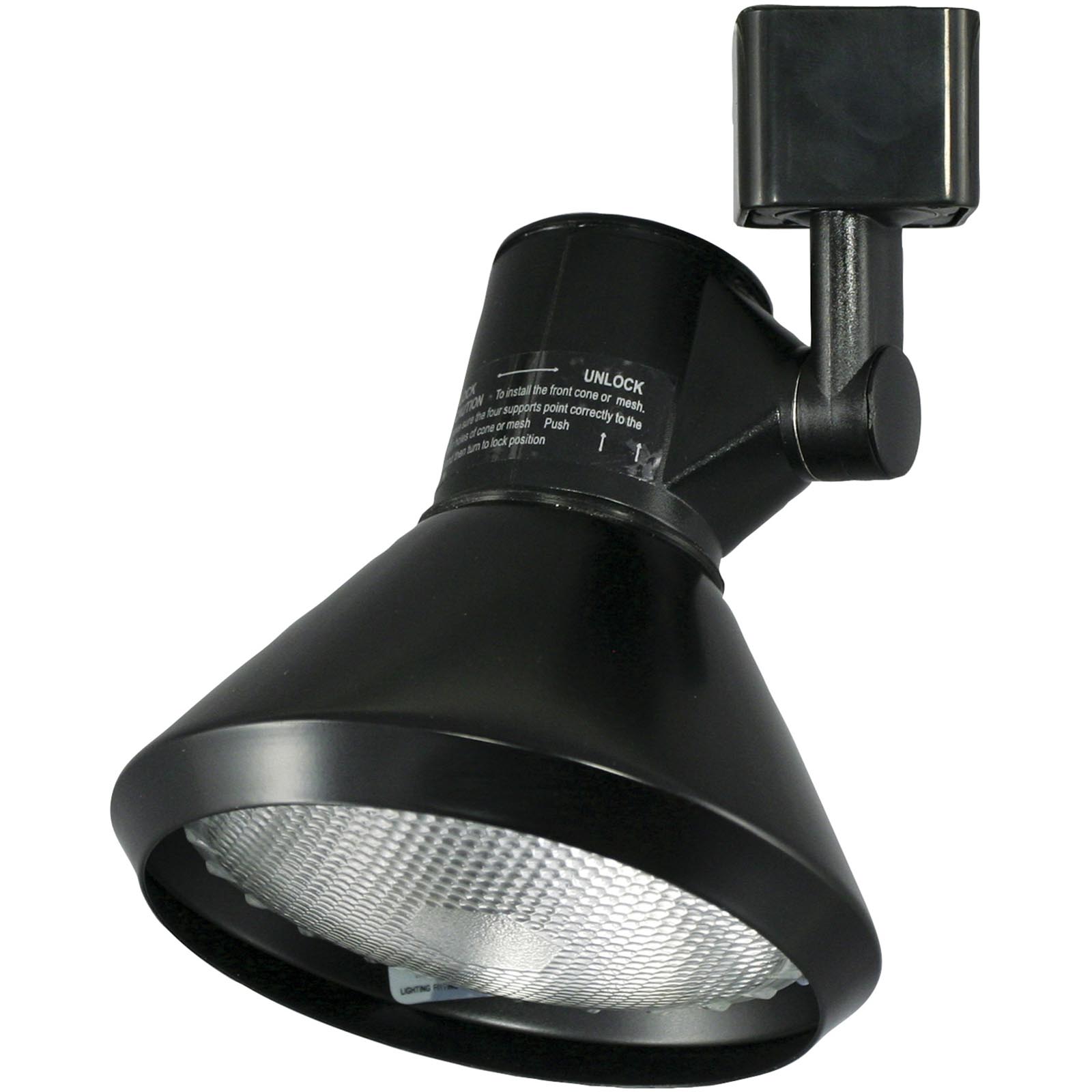

| Line Voltage Track | 120V Standard | PAR20 / PAR30 / BR30 / GU10 | UL, ETL Listed | Boutiques, Residential Accent, Hospitality |

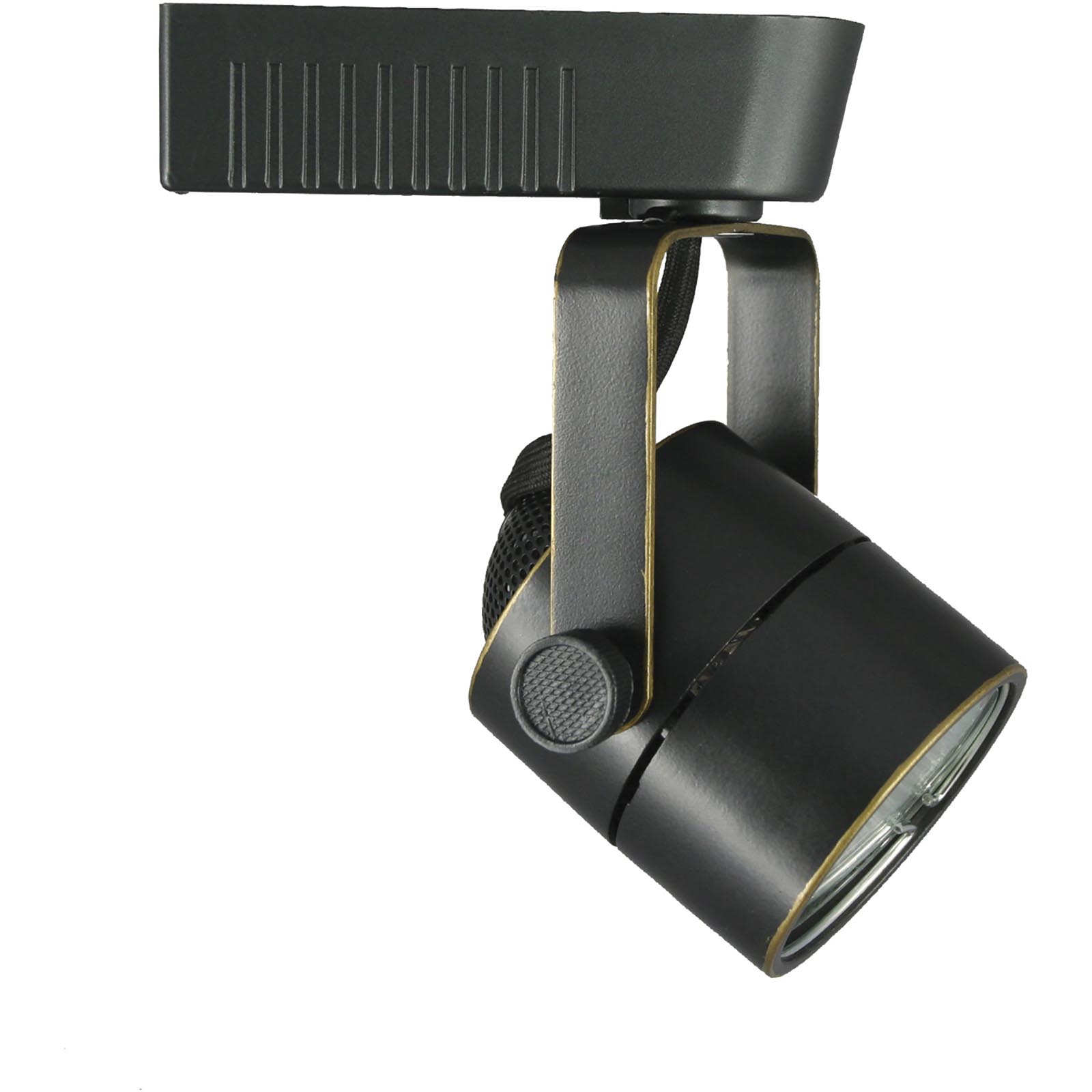

| Low Voltage Track | 12V AC (Integrated Driver) | MR16 / High Intensity Spot | ETL Listed | Jewelry Displays, Fine Art Spotlighting |

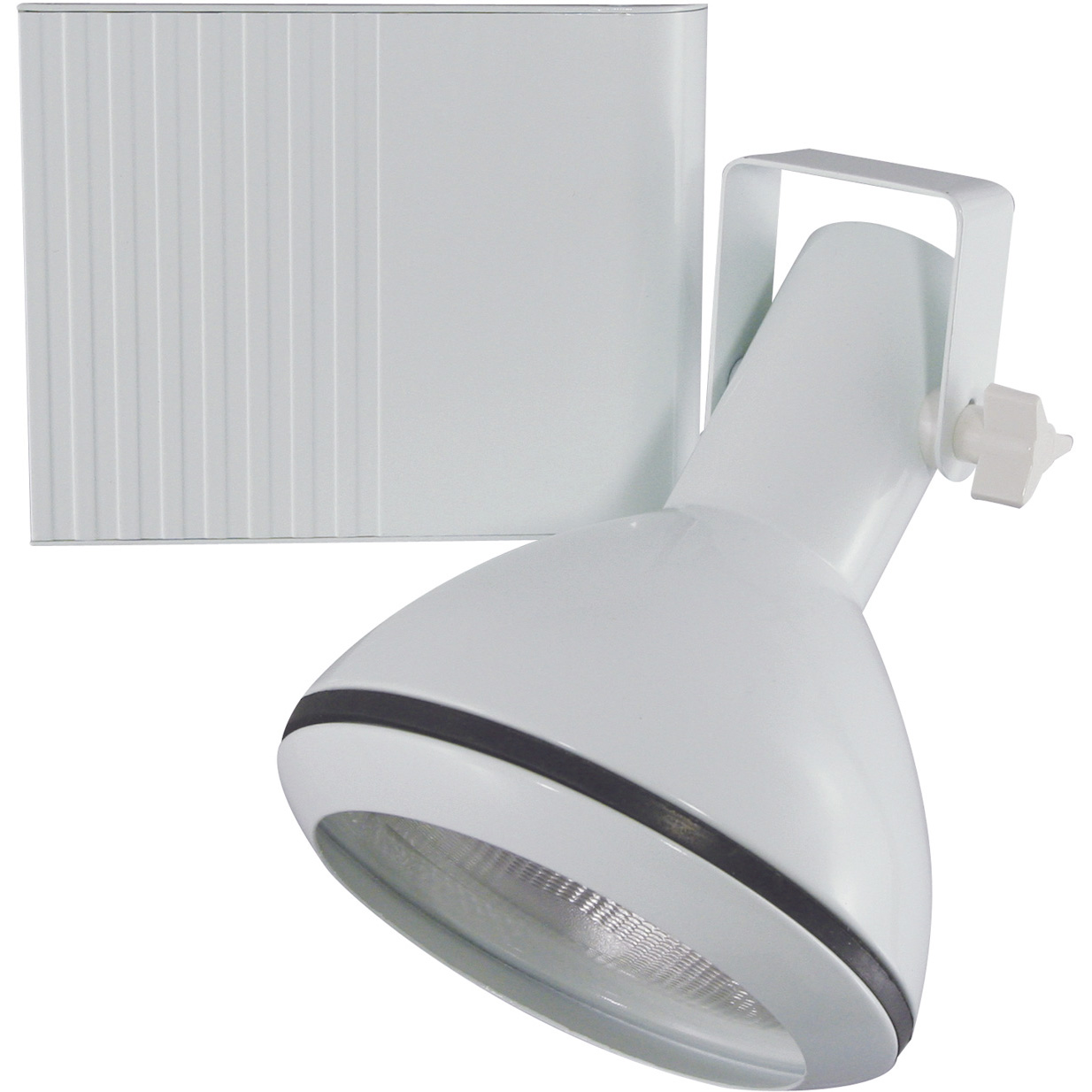

| Metal Halide / High Bay | 120V / 277V AC | High Lumen Discharge / COB | UL Listed | Large Showrooms, Supermarkets, Atriums |
| Track Accessories | System Rated | Feeds, Connectors, Suspension Kits | UL Component Listed | Custom Ceiling Mounting & Grid Layouts |
Procurement FAQ
Frequently Asked Questions
Answers to common specification, compliance, and volume ordering queries from global buyers.
Our track lighting heads are supplied standard with H-Type (3-wire Halo compatible) adapters. We also produce J-Type (Juno compatible) and L-Type (Lightolier compatible) adapter variants upon request to accommodate existing infrastructure in project retrofits.
Yes. All hardwired track heads, linear track sections, power feeds, and connectors are designed to North American safety codes and carry valid UL or ETL safety listings for dry and damp locations.
We provide full customization for contract orders. Spot optics (15°), narrow flood (24°), and wide flood (36°) lenses are available alongside CCT options from 2700K to 5000K, plus high CRI 95+ LED chips for color-critical applications.
We maintain strict binning tolerances (within 3-step MacAdam ellipses) for all LED components and enforce consistent powder-coating formulas. This guarantees matching color temperature, lumen output, and hardware finish across initial orders and future re-orders.
